ENGINE PROTECTIVE DEVICE (EPD)

EQUIVALENT TO EMD PART NO. 9320130

ENGINE PROTECTIVE DEVICE (EPD)

The protective devices consist of mechanical crankcase pressure detector and a low water detector. If the device detects the positive crankcase pressure or low coolant level, the appropriate detector senses this condition and initiates engine shutdown.

STANDBY INVERTER FOR FUEL PUMP MOTOR

EQUIVALENT TO EMD PART NO. 40122943

STANDBY INVERTER FOR FUEL PUMP MOTOR

Inverter: This assembly comprises semiconductor and associated electronic and electrical components used for DC to AC inversion for the purpose of driving AC motor which include circuit for stabilized power output surge suppression and other protective circuit adopted by the manufactures for ensuring satisfactory performance and reliability of the inverter unit.

FUEL PUMP INVERTER

ELIXIR Part No. EE/FPM/1.5HP/027 Equivalent to EMD Part No. 40122943 ALT-A

FUEL PUMP INVERTER

This inverter for vertical fuel pump motor of paragon make is highly reliable, it converts 72VDC to 55V 3-phase AC for motor operation. The inverter is rugged and maintenance free, given satisfactory performance even in extreme operating condition. And already has proven performance in the field.

RECTIFIER & RESISTOR ASSEMBLY BATTERY CHARGER

EQUIVALENT TO EMD PART NO. 8479400 REV V2

RECTIFIER & RESISTOR ASSEMBLY BATTERY CHARGER

The battery charging rectifier assembly converts 55V 3-phase AC to 72VDC. This assembly is used in all HHP locomotives operating on Indian Railways. Built with high quality electronics and rugged construction makes this unit give reliable performance for many years with specifically zero maintenance.

SCR EXCITER BRIDGE ASSEMBLY

EQUIVALENT TO EMD PART NO. 8451653

SCR EXCITER BRIDGE ASSEMBLY

The SCR exciter bridge assembly is responsible for supplying controlled field current to the traction alternator field windings in WD4/P4 locomotives. The assembly is built with the highest quality of electronics and will give satisfactory performance for many years. It works iwth 230V 3-phase AC input and generates 120V DC and can handle more load current up to 150 Amps DC.

TRANSFORMER

EQUIVALENT TO EMD PART NO. 8234831

TRANSFORMER

This is sub part of electrical control cabinet which will mounted in ECC-1. This is also called as Ground Relay Transformer and provides supply voltage to ground Relay (GR) to pick up coil circuit.

ROTATING RING RECTIFIER

EQUIVALENT TO EMD PART NO. 2803017

ROTATING RING RECTIFIER

It is used in the auxiliary generator of locomotives which converts Alternating Current(AC) to Direct Current(DC).

MAIN RESERVOIR PRESSURE TRANSDUCER

EQUIVALENT TO EMD PART NO: 40052557

MAIN RESERVOIR PRESSURE TRANSDUCER

The MRPT Sensor is used to measure the MR tank pressure for all EMD Engines. Operating Range : 200PSI Output Current : 4-200mA

GUIDED WAVE RADAR FUEL LEVEL SENSOR

.

GUIDED WAVE RADAR FUEL LEVEL SENSOR

This describes Sensor system for measuring of diesel level in diesel electrical locomotives, high frequency microwave pulse are coupled onto a cable or rod and guided along the probe. The pulse is reflected by the product surface. The time from emission to reception of the signals is proportional to the level in the vessel.

DRIVER DISPLAY UNIT

.

DRIVER DISPLAY UNIT

The Display with VGA Graphic capability having normal features of the presently used 4x40 LCD Display. It has extended features like provision of context sensitive trouble shooting resistance to the driver. Viewing of process variables on graphic mimic diagrams arranged in pre-defined screens. Viewing cab meters in graphic mimics, various sub-system and equipment internal status. Driver authentication, viewing the en-route speed restriction chart (futuristic) etc.

FIRE DETECTION EQUIPMENTS FOR ELECTRIC LOCOMOTIVES

AS PER CLW SPECIFICATION NO. CLW/ES/3/0057

FIRE DETECTION EQUIPMENTS FOR ELECTRIC LOCOMOTIVES

The Optical Sensor System in FDU is based on the principle where smoke scatters light. An infrared LED transmits intensive light pulses into the scattering chambers. The receiving element is screened off from direct IR light so that some of it reaches the receiver whose signal is evaluated by the electronics after three positively evaluated pulses, an alarm should be transmitted to the control Unit. If the detector is contaminated and the air is clean no signal is available at the receiver. If the air contains smoke, the receiver identifies signal that is transmitted to electronics.

CURRENT TRANSDUCER - 1000A CURRENT SENSOR

EQUIVALENT TO EMD PART NO: 40046385

CURRENT TRANSDUCER - 1000A CURRENT SENSOR

This device has the Hall Effect based closed loop (Compensated) current sensors. It can be used for measuring either of AC, DC or Pulsed Currents This device works through Galvanic Isolation between the high power (Primary) and low power (Electronic Secondary) Circuits. Excellent accuracy, UPS, SMPS, Current over load capability Static Converters for DC motor drives

COACH SPEED SENSOR (WSP SENSOR)

.

COACH SPEED SENSOR (WSP SENSOR)

NEED CONTENT

LOCO CAB AVR (LCVR)

.

LOCO CAB AVR (LCVR)

NEED CONTENT

RADAR SPEED SENSOR TEST BENCH

ELIXIR PART NO. EE/RTS/2015/012

RADAR SPEED SENSOR TEST BENCH

Radar speed sensor test bench is used to test and calibrate speed sensor. It is simulated with the loco parameters when the unit is placed on the bench for testing. This is designed, developed and manufactured by EE. The bench is designed such that software has the capability to read speed for about 180 km/ph

PRESSURE SENSOR TEST STAND

ELIXIR PART NO. EE/PSTS/2015/020

PRESSURE SENSOR TEST STAND

Pressure sensor test stand is designed by EE to test different range of pressure sensors. It is user settable bench with all parameters provided. It can be tested in two form i.e., hydraulic or pneumatic Indian railways procure ~ 5 number/ per annum

WATER PUMP REPAIR KIT

EQUIVALENT TO EMD PART NO. 40000927

WATER PUMP REPAIR KIT

The engine gear train drives two centrifugal water pumps. Two large pumps are used to circulate water through the engine cooling system due to continuous dynamic operation water pump spares (Kit) have to be replaced once in 3 years

BUSHING GEAR

EQUIVALENT TO EMD PART NO. 40076287

BUSHING GEAR

Bushing gear is an application for piston cooling and pressure pump for HHP locomotives.

COUPLING ASSEMBLY

EQUIVALENT TO EMD PART NO. 8323180

COUPLING ASSEMBLY

A Coupling Assembly Accessory Drive also called Front End Accessory Drive will see coupled mechanical driven by a drive shaft from the front Accessory End

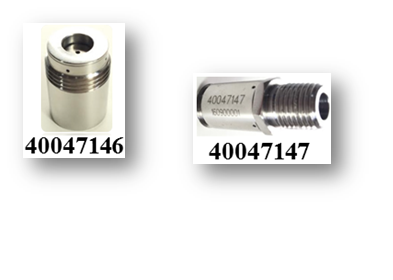

7/8 RELIEF & 1/4 VALVE RELIEF

EQUIVALENT TO EMD PART NO. 40047146 & 40047147

7/8 RELIEF & 1/4 VALVE RELIEF

The relief valve is a type of valve used to control or limit the pressure in a system or which can build up for a process upset, instrument or equipment failure or fire

TRACTION MOTOR COVER ASSEMBLY

EQUIVALENT TO EMD PART NO. 40105347

TRACTION MOTOR COVER ASSEMBLY

...

LABYRINTH SEALING RING

EQUIVALENT TO DMW DRG NO. 1/DMW/M/TM587ALT-Z AND 1/DMW/M/TM622

LABYRINTH SEALING RING

......

SLIP RING ASSEMBLY

EQUIVALENT TO EMD PART NO. 8345866

SLIP RING ASSEMBLY

The application of this product is for EMD Main alternator. This is Electromechanical device that allows the transmission of power and electrical signals from stationary to Rotating Structure. This is compatible with all EMD 3.5, 4, 4.5 & 5 Hp locomotives.

COMPRESSION TESTER

EQUIVALENT TO EMD PART NO. 9572281

COMPRESSION TESTER

Compression Engine needs to be checked in all HHP Loco sheds. This tester can find out many things about the mechanical conductor of the engine, for eg., pressure leaks through rings cylinders valves or a head gasket with and taking apart the engine.

ENGINE PROTECTION DEVICE TEST BENCH

EQUIVALENT TO EMD PT NO 9339066

ENGINE PROTECTION DEVICE TEST BENCH

Engine protection device is designed to test Detector Assembly. It is used to test low water and crank-case pressure of the Unit. It uses air as the medium for testing engine protection device instead of water or oil.

RADAR ASSEMBLY/LOCOMOTIVE SPEED SENSOR

EQUIVALENT TO EMD PART NO. 40081692

RADAR ASSEMBLY/LOCOMOTIVE SPEED SENSOR

This Doppler K-band Radar measures the absolute ground speed that can be reliably used as the reference vehicle speed. By comparing the Doppler speed with each rotating axle speed, the slip/slide can be found out for each axle, this method is used on the GT46MAC or GT46PAC (WDG4/WDP4 locomotives). Radar Unit includes a signal-processing algorithm (Discrete Fourier Transforms) that determines the strength of return signal from a target. If the signal is strong enough, the output is turned on and the sensor is said to be “locked” (Good data) because different targets reflect different amounts of the radar energy back to the sensor (Like tracks, stones, wood, sand, etc), the sensor will lock at different distances from the target depending on such factors as target size, material and orientation. In general, large targets reflect more energy and the sensor will be able to distinguish them at a greater distance.

FUEL PUMP MOTOR

ELIXIR Part EE/FPM/1.5HP/027 EQUIVALENT TO EMD PART NO. 40122943 ALT-A

FUEL PUMP MOTOR

The fuel pump starts to work in diesel loco when the engine start swtich held in PRIME, the locomotive computer starts the fuel pump which pressurizes the injection system. The fuel pump moves the fuel from the fuel tank under the locomotive to the injectors. After the entire system has been supplied with fuel, the engine can be started by holding the PRIME/START switch in START. With the engine running, the fuel pump motor is powered output by the auxiliary generator. Inverter is an electrical item and fuel pump is mechanical in this.

DIGITAL SPEED INDICATOR

EQUIVALENT TO EMD PART NO. 40153775

DIGITAL SPEED INDICATOR

The digital speed indicator works with 15 VDC supply and takes its speed reference from the LCC through RS-485 serial communication interface. These indicators are highly reliable and accurate. This is a perfect solution to all troubles with analog speed indicators. Also, they do not need any calibration or maintenance at all.

TRACTION MOTOR SPEED SENSOR

EQUIVALENT TO EMD PART NO. 40142706

TRACTION MOTOR SPEED SENSOR

TM speed sensors are used in Railway Locomotive application to measure the speed of the traction motor and to control the brakes to prevent brake locking and wheel slippage. These motors are normally equipped with a transmitter wheel, which is sensed by speed sensor. As the system needs to drive the train forwards and backwards, the sensor has 2 phase shifted channels thus enabling direction sensing port from the speed.

TRACTION MOTOR TEMPERATURE SENSOR

EQUIVALENT TO EMD PART NO. 40171676

TRACTION MOTOR TEMPERATURE SENSOR

TMTS is used to measure temperature of armature of traction motor and also measures temperature by correlating resistance of RTD element. RTDs in Traction motors measure the temperature inside the armature coil. RTDs are relatively immune to Electrical Noise and therefore well suited for temperature measurement especially around motors, generators and other high voltage equipment.

TEMPERTAURE SENSOR TEST STAND

ELIXIR PART NO. EE/TM/TS/2014-015

TEMPERTAURE SENSOR TEST STAND

Temperature Sensor Test Bench is used to check all the different types of temperature sensors used in the locomotives like • Battery Box Temperature Sensor • Engine Temperature Sensor • Traction motor Temperature Sensor • Temperature Sensor for Oil cooling Transformer • Temperature Sensor for Power Converter The Test Bench consists of a Refrigerator/ Heating Circulator which can create the temperature of the desired kind from 35°C to +200°C. A 61/2 Digital Multi meter to measure the resistance of the sensor element accurately

DC LINK MOTOR TEST STAND

ELIXIR PART NO. EE/DCL/2015/010

DC LINK MOTOR TEST STAND

This stand is designed to check the parameters/logic of the DC link swith gear and to adjust/secure the torque of end shaft of the motor. In the HHP locomotives, the DC link switch gear motor clutch torque needs to be adjusted periodically accoriding to the HHP locomotives maintenance instructions. If the clutch torque is not proper i.e., 36-68N/m it may fail on the line or show errors in the output of the DCL Motor,

CHUTE ARC

EQUIVALENT TO EMD PART NO. 9570152

CHUTE ARC

Chute Arc

COIL FOR GFD CONTACTOR

EQUIVALENT TO EMD PART NO.

COIL FOR GFD CONTACTOR

Coil for GFD Contactor

ELECTRIC LOCO SPEED SENSOR

EQUIVALENT TO CLW SPEC NO. CLW/ES/3/0528 ALT-A

ELECTRIC LOCO SPEED SENSOR

When the toothed wheel (120 teeth) moves under the Hall-Effect sensors, the magnetic field linking with the sensors vary according to the tooth and trough of the wheel. The flux variation is measured by the sensor and amplified. For every revolution of the tooth wheel, 120 pulses are generated, this sensor will work from zero speed to 2950RPM.

COIL MAGNET 34 OHMS

EQUIVALENT TO EMD PART NO 9523041

COIL MAGNET 34 OHMS

COIL MAGNET USED IN ST CONTACTOR

RECTIFIER ASSEMBLY

EQUIVALENT TO EMD PART NO 8413371

RECTIFIER ASSEMBLY

RECTIFIER ASSEMBLY EQUIVALENT TO EMD PART NO 8413371

CURRENT TRANSFORMER

EQUIVALENT TO EMD PART NO 8374003

CURRENT TRANSFORMER

CURRENT TRANSFORMER EQUIVALENT TO EMD PART NO 8374003

TERMINAL BOARD 18 POINTS

EQUIVALENT TO EMD PART NO 8253886

TERMINAL BOARD 18 POINTS

Terminal Board 18 Points EQUIVALENT TO EMD PART NO 8253886

TERMINAL BOARD 8 POINTS

EQUIVALENT TO EMD PART NO. 40072753

TERMINAL BOARD 8 POINTS

Terminal Board 8 Points TB 32A ,BC EQUIVALENT TO EMD PART NO. 40072753

EPD SPARES CONSISTING OF 31 ITEMS

EQUIVALENT TO EMD PART NO.

EPD SPARES CONSISTING OF 31 ITEMS

EPD Spares Consisting of 31 items EQUIVALENT TO EMD PART NO.

RELAY COILS 1853 OHMS ,1128 OHMS

EQUIVALENT TO EMD PART NO. 8415919,8415916

RELAY COILS 1853 OHMS ,1128 OHMS

Relay Coils 1853 ohms ,1128 ohms EQUIVALENT TO EMD PART NO. 8415919,8415916

MODIFIED RADAR LENS CAP

EQUIVALENT TO EMD PART NO. 40048758

MODIFIED RADAR LENS CAP

Radar Plate EQUIVALENT TO EMD PART NO. 40048758

FUEL PUMP MOTOR TEST STAND

ELIXIR PART NO. EE/FPM/TS/021

FUEL PUMP MOTOR TEST STAND

This test stand is used to test the fuel pump motor at the lab environment to check Inverter failure Suction pressure, Delivery pressure, Internal Short circuit, motor performance, flow rate of fuel, Bearing, Load current and Motor Temperature

SPEED SENSOR TEST STAND

ELIXIR PART NO. EE/SSTS/2015/014

SPEED SENSOR TEST STAND

This test bench is used to test the speed sensor of motor at the lab environment for checking the following, - Sensor failure - Internal magnetic coil weakness - Performance - Proper output of speed sensor performance - Connector pins

CONTACTOR STARTING (ST)

ELIXIR PART NO. EE/STC/2018/237

CONTACTOR STARTING (ST)

The engine starting contactor is a 2000A model. It is located in Electrical Control Cabinet (ECC2) cabinet. The movable main contacts and auxiliary interlocks are connected to a metallic plunger that moves in a vertical path through the center of the operating coil. When the coil is energized, this plunger is attracted upward; the main contacts close, and the auxiliary interlocks change position according to the design of the different model contactors. When the operating coil is de-energized, the return spring forces the plunger downward opening the main contacts and returning the auxiliary interlocks to their normal positions.
