Locomotive Parts

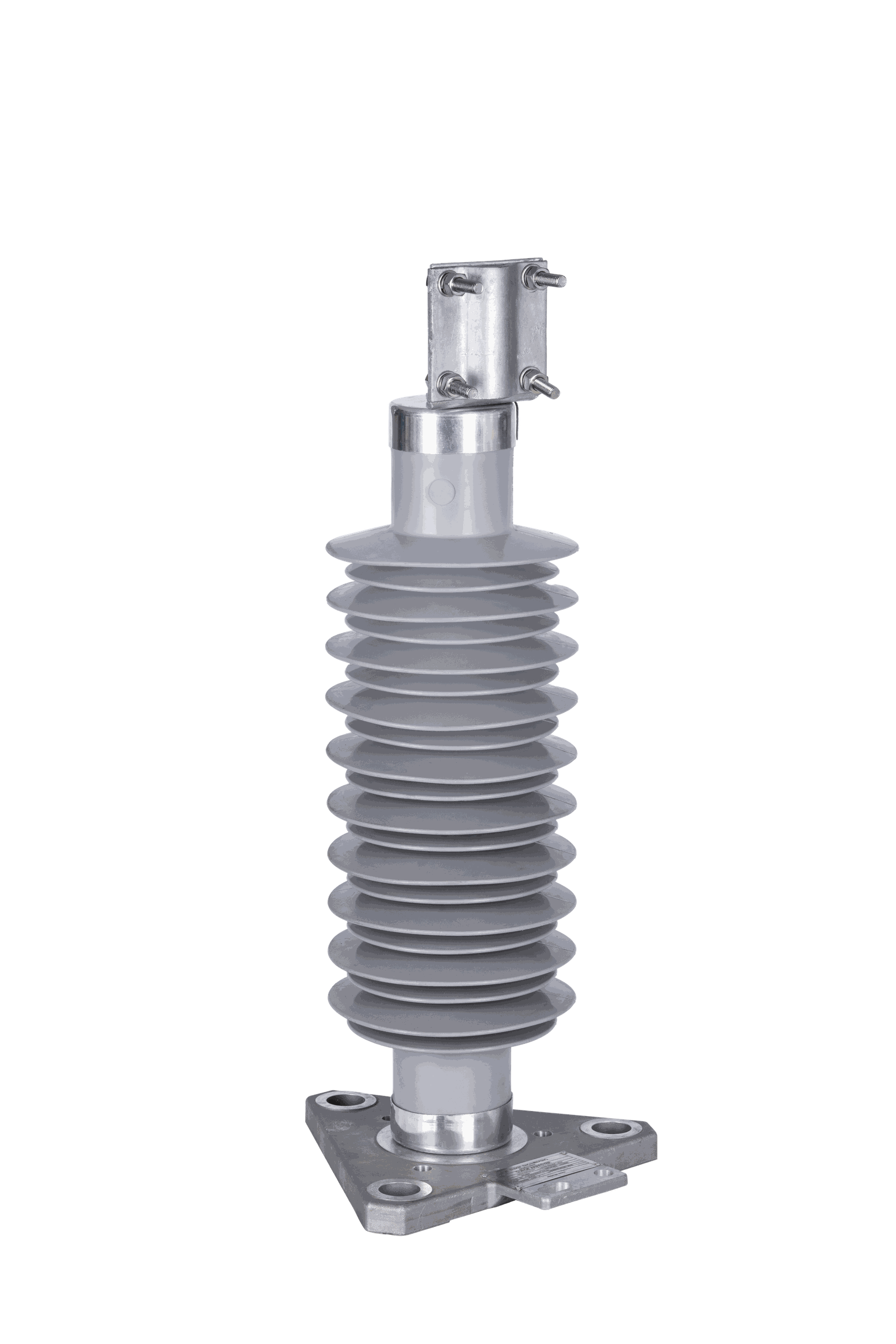

Surge Arrester 60 KV 10 KA
Spec. No. / Part No.
General
Specification
Rated Voltage
60 kV
Nominal Discharge Current
10 kA
System Application
25 kV AC Traction
Type
Metal Oxide (ZnO), Gapless
Frequency
50 Hz
Housing
Polymer / Silicone Rubber (UV & weather-resistant)
Insulation Level
As per IEC 60099
Protection Class
Suitable for outdoor / roof-mounted applications
Operating Temperature
-10°C to +55°C
Mounting
Suitable for rolling stock and traction installations
Design
Compact, maintenance-free, high energy absorption capacity
Description
The 60 kV, 10 kA Surge Arrester is designed to protect railway traction and high-voltage equipment from lightning strikes, switching surges, and transient overvoltages. Built with advanced metal oxide (ZnO) technology, it ensures reliable protection, improved equipment life, and safe operation in 25 kV AC railway electrification systems.
Key Customers
Indian Railways Chittaranjan Locomotive Works (CLW) Railway Production Units & Locomotive Manufacturers Rolling Stock OEMs & System Integrators Railway Maintenance Depots & Workshops Electrification & Traction Contractors
